SVF Valves

SVF (Super Valve Factory), the company specializes in business of valves, including ball valve, gate valve, globe valve, check valve, butterfly valve, plug valve, safety valve, strainer, etc. We follow the API / DIN international standards to make sure our valves will fit most of the engineering projects.

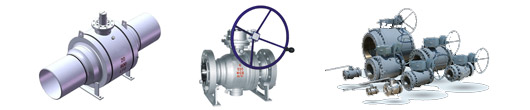

1. Ball Valve
Size: NPS1/2"~56"
Rating: Class150~2500
Constructions:
  • Bi-direction sealing
  • Anti-static device
  • Blow-out Proof Stem
  • Fire safe as per API607
  • Full bore, Reduced bore
    • Connection: BW, RF, RJ
    Design standard: API 6D,BS 5351,API 608,ASME B16.34
    Material: WCB,LCB,LCC,CF8,CF8M,CF3,CF3M,4A,5A, A105, LF2, F304,F316,F304L,F316L,F51,F53
    Operation:: Lever, Gear, Electrical actuator, Pneumatic actuator
    2. Gate Valve
    Size: NPS2"~48"
    Rating: Class150~2500
    Constructions:
  • Outside screw and yoke (OS&Y)
  • Bolted bonnet (B.B)
  • Pressure Seal bonnet (P.S)
  • Flexible wedge
  • Rising stem and Non-rising handwheel
  • Forged T-head stem
    • Connection: BW, RF, RJ
    Design standard: API 600,BS 1414,DIN3352
    Material: WCB,LCB,LCC,WC6,WC9,CF8,CF8M,CF3,CF3M,4A,5A, 1.0619, 1.4308, 1.4408
    Operation:: Lever, Gear, Electrical actuator, Pneumatic actuator
    3. Globe Valve
    Size: NPS2"~24"
    Rating: Class150~2500
    Constructions:
  • Outside screw and yoke (OS&Y)
  • Bolted bonnet (B.B)
  • Pressure Seal bonnet (P.S)
  • Plug, Flat disc
  • Rising stem and rising handwheel
    • Connection: BW, RF, RJ
    Design standard: BS 1873,DIN3356, EN558
    Material: WCB,LCB,LCC,WC6,WC9,CF8,CF8M,CF3,CF3M,4A,5A, 1.0619, 1.4308, 1.4408
    Operation:: Lever, Gear, Electrical actuator, Pneumatic actuator

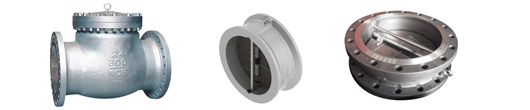

    4. Check Valve
    Size: NPS2"~48"
    Rating: Class150~2500
    Constructions:
  • Bolted Cover (B.C)
  • Swing type
  • Lift type
  • Dual Plate type
    • Connection: BW, RF, RJ, WAFER
    Design standard: BS 1868, API 6D, API 594, DIN3840, EN558
    Material: WCB,LCB,LCC,WC6,WC9,CF8,CF8M,CF3,CF3M,4A,5A, 1.0619, 1.4308, 1.4408

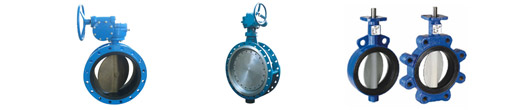

    5. Butterfly Valve
    Size: NPS2"~80"
    Rating: Class150~300
    Connection: RF, WAFER
    Design standard: API 609, EN593
    Material: CI, DI, WCB,LCB, LCC,WC6,WC9,CF8,CF8M,CF3, CF3M,4A, 5A, 1.0619, 1.4308, 1.4408
    Operation:: Lever, Gear, Electrical actuator, Pneumatic actuator

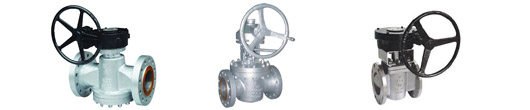

    6. Plug Valve
    Size: NPS1/2"~40"
    Rating: Class150~2500
    Type: Lubricated, Jacket, Sleeve
    Connection: NPT, RF, RJ
    Design standard: BS 1873,DIN3356, EN558
    Material: WCB, CF8,CF8M,CF3,CF3M,4A,5A
    Operation:: Lever, Gear, Electrical actuator, Pneumatic actuator
    7. Forged Valve
    Size: NPS 1/2"~2"
    Rating: Class150~2500
    Constructions:
  • Outside screw and yoke (OS&Y)
  • Bolted bonnet (B.B)
  • Welded bonnet (W.B)
    • Connection: SW, RF, FNPT
    Design standard: API 602
    Material: A105,LF2,F11,F22,F304,F316,F304L,F316L,F51,F53
    Operation:: Handwheel
    8. Safety Valve
    Size: NPS1/2"~20"
    Rating: Class150~2500
    Constructions:
  • Conventional
  • Balanced Bellows
    • Connection: NPT, RF, RJ
    Material: WCB,LCB,LCC,WC6,WC9,CF8,CF8M,CF3,CF3M,4A,5A
    9. Strainer
    Size: NPS2"~36"
    Rating: Class150~900
    Constructions:
  • Bolted Cover (B.C)
  • Y type
  • T type
  • Basket type
    • Connection: BW, RF, RJ
    Design standard: BS 1873, DIN, ASME B16.34
    Material: WCB, WPB, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, 4A, 5A
    10. Flange
    Size: NPS1/2"~80"
    Rating: Class150~2500
    Standard: ANSI B16.5,ANSI B16.47 Series A & B, BS EN1092-1 etc.
    Material: A105, LF2, F5, F11, F22, F304, F316, F304L, F316L, F321, F347 etc.
    Type: Welding necks, Slip-ons, Blinds, Lap Joints, Threaded flanges, Socket-welding flanges, Plate flanges, Orifice flanges, Reducing flanges, Long Welding Neck flanges, Spectacle Blind flanges
